FridgeGuard 接続検証(実測サンプル・2026-07-23朝)
7/23/2026, 09:26 AM – 7/23/2026, 10:02 AM

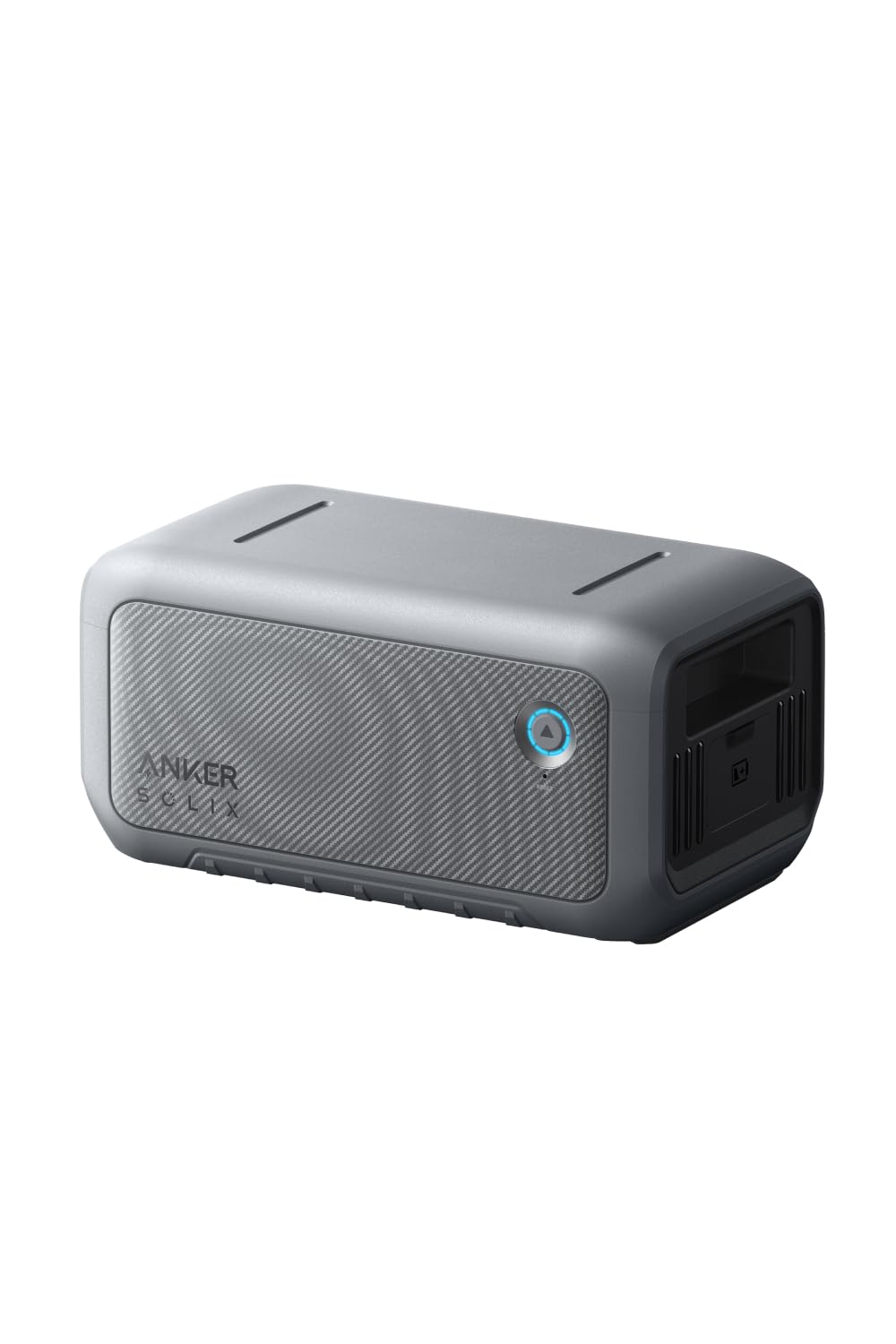

冷蔵庫×ソーラー検証(8/8公開予定)の準備として、Anker SOLIX C2000 Gen 2・拡張バッテリーBP2000・スマートプラグの実測データ取得を検証した際の実サンプルです。ソーラー充電中の入力W・AC出力W・バッテリー残量(本体/拡張)・温度を約6分間計測しました。本番の24時間検証はこのページ形式でライブ公開予定です。
Anker Solix PS400 Dual ソーラーパネル (400W)×2 parallel
☀️ 301W
Solar input
Anker Solix C2000 Gen 2 Portable Power Station
Total charge⚡ Charging
日立 R-HWC62T(617L)
🔌 112.9W
Smart plug
Measured 7/23, 10:01 AM JSTanker
Battery level (%)
Combined / Main / ExpansionPower (W)
Solar in / AC out / PlugTemperature (C)
Main / ExpansionVoltage & Current (smart plug)
AC voltage (left) / Current (right)📊 Daily data
| Date | Fridge | Other loads | From wall | Self-suff. | Solar (ref.) | SOC (start→end, min) | Detail |
|---|---|---|---|---|---|---|---|
| Thu, 7/23 | 1.9Wh※ | — | — | — | 0Wh | 68% → 68% (min 68%) |
Method: fridge / other loads / from-wall figures use each smart plug's built-in daily energy counter (hardware accumulation). Days without a counter (※) fall back to trapezoidal integration of ~30s readings; gaps in reporting are excluded from totals and coverage. Solar Wh is the power station's own cloud-reported figure (reference). Self-sufficiency = 1 − from-wall ÷ (fridge + other loads).
* Data comes straight from device telemetry. Results vary with temperature, sunlight and load.
